Notes: Fuselage Build

This page contains notes and references of note pertaining to the fuselage build organized by build manual page.

C2: Rear Floor Assembly

Orientation of RF-LGN-902-L and -R backwards in build manual. Need to be swapped with each other in order to mate correctly with CF.

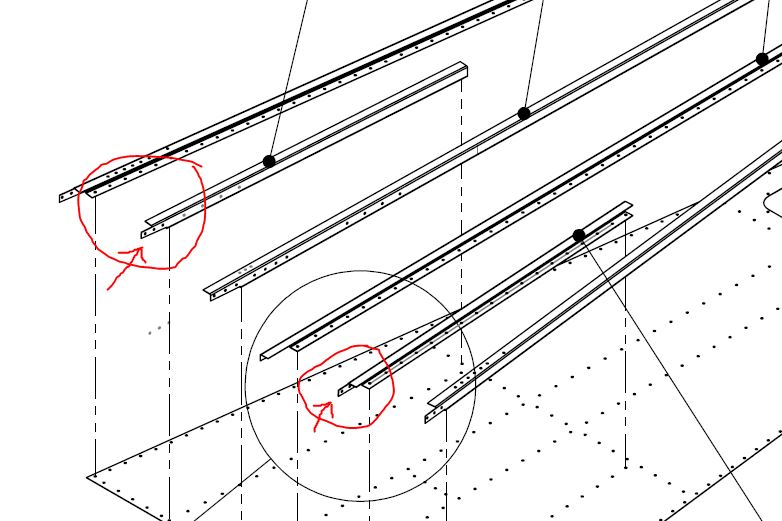

From fuselage build manual page C2 (rev 3) - Note orientation of flanges:

Now, from electrics manual (ver. 3.5) page 39 (rev. 0):

The orientation from the electrics manual is correct as the flanges mate properly with the rear seat ribs in the center fuse.
